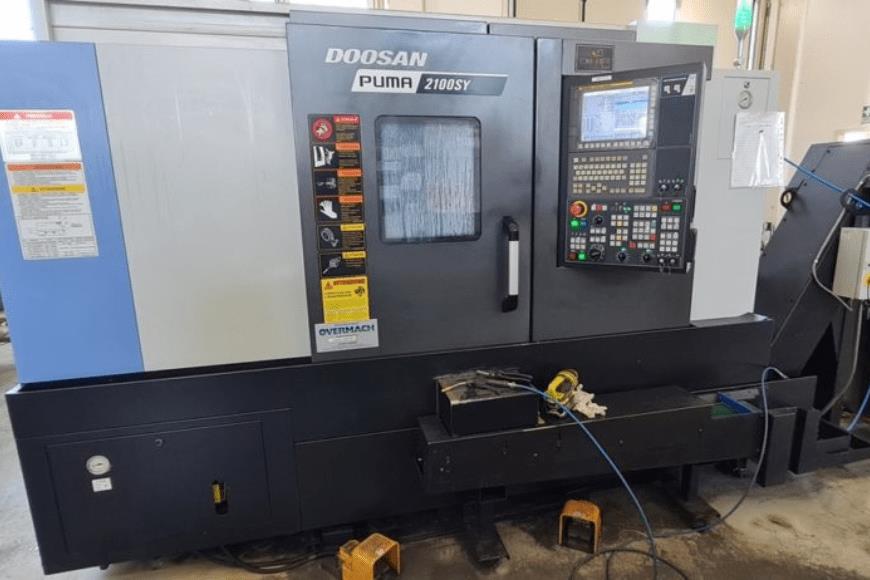

Doosan Puma 2100SY
6-axis CNC lathe with sub-spindle, live tooling, Y-axis, and Fanuc i-Plus iHMI
CNC
TRAVELS
X-axis: 260 mm
Z-axis: 590 mm
Y-axis: 105 mm
CAPACITY
Max swing diameter: 780 mm
Max turning diameter: 376 mm
Max turning length: 520 mm
Max bar capacity: 65 mm
SUB-SPINDLE
Sub-spindle chuck diameter: 170 mm
Sub-spindle mount: ASA 5
Sub-spindle speed: 6000 rpm
Sub-spindle motor power: 15 kW
TURRET
Stations: 12 (opt. 16)
Live tool power: 5.5 kW
MAIN SPINDLE
Chuck diameter: 210 mm
Mount: ASA 6
Spindle speed: 5000 rpm
Spindle motor power: 22 kW
