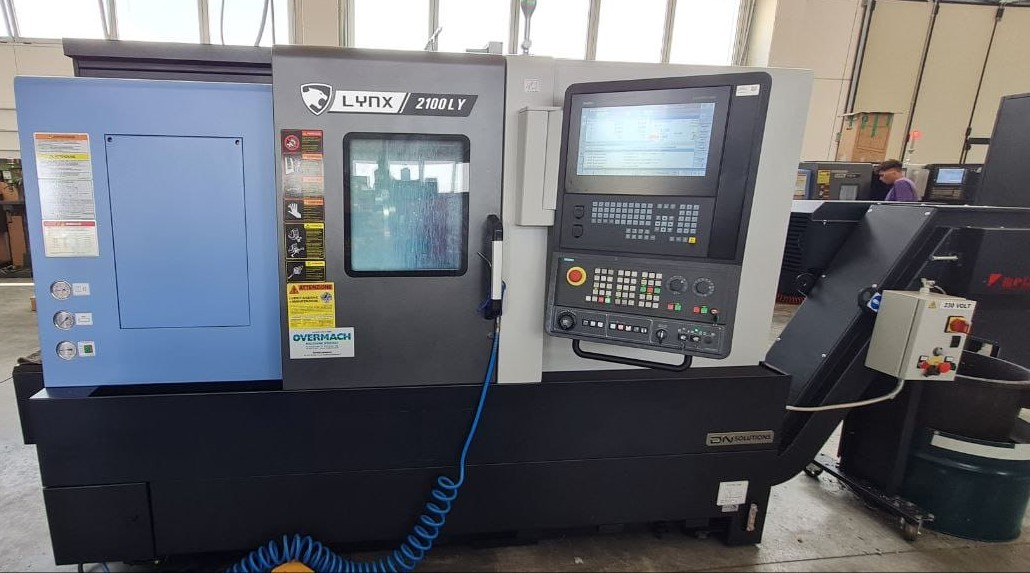

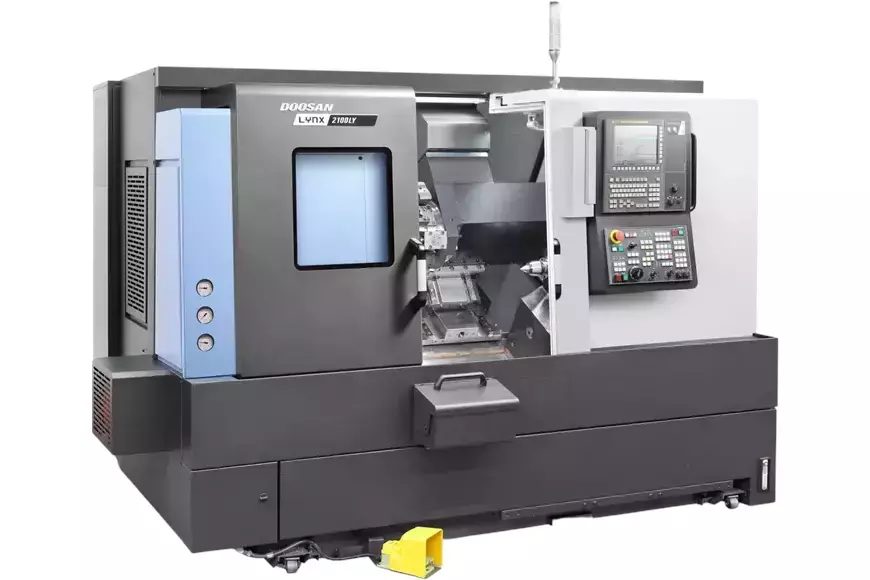

DS Solution Lynx 2100LY
4-axis CNC lathe with live tooling and Y-axis
CONTROL
Additional CNC: Siemens 828D
TRAVELS
X-axis: 205 mm
Z-axis: 560 mm
Y-axis: 105 mm
CAPACITY
Max swing diameter: 600 mm
Max turning diameter: 300 mm
Max turning length: 510 mm
Max bar capacity: 51 mm
TURRET
Stations: 24
Live tool power: 3.7 kW
SPINDLE
Chuck diameter: 210 mm
Mount: ASA 5
Spindle speed: 6000 rpm
Spindle motor power: 15 kW
