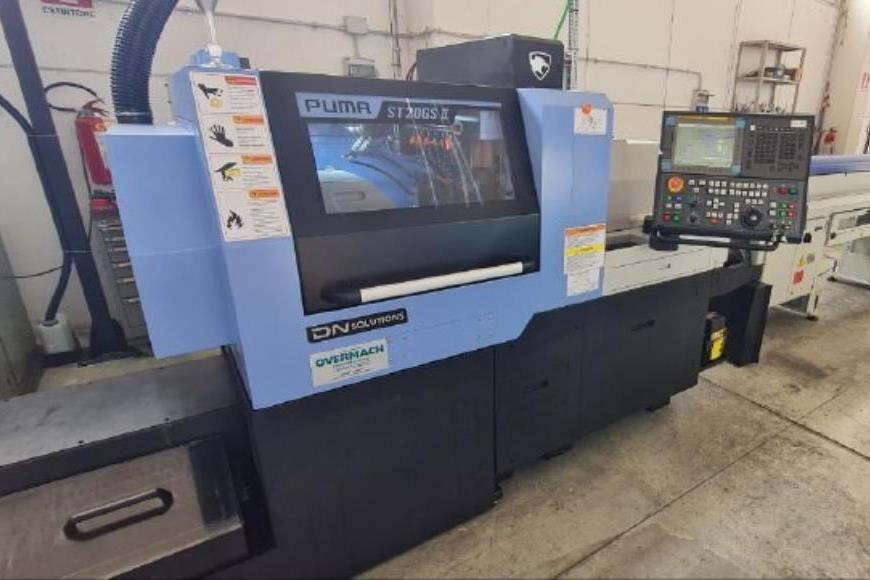

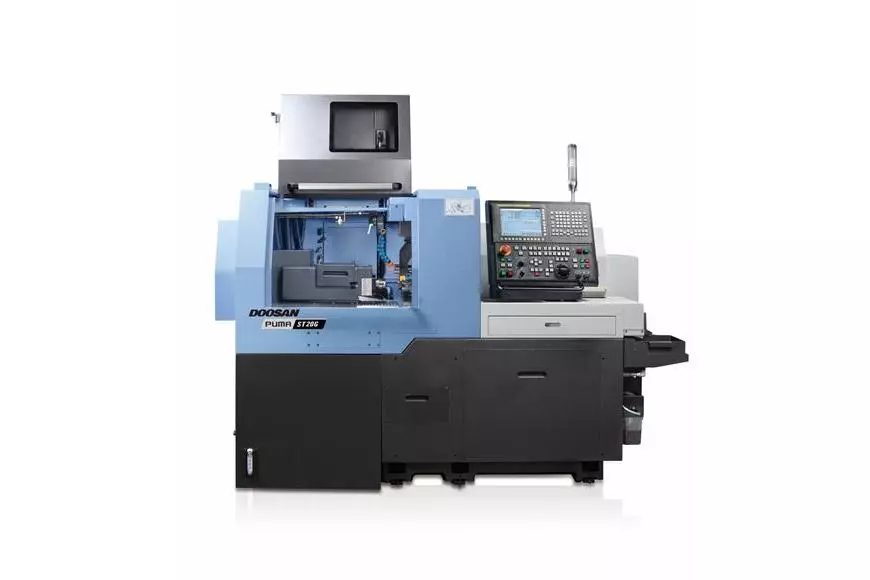

Puma ST20GS-II
7-Axis Sliding Head CNC Lathe “DN Solutions model PUMA ST20GS-II” with
sub-spindle, live tooling, and DN
Solutions-Fanuc i-Plus CNC control.
TRAVEL
X-axis: 90 mm, Z-axis: 200 mm, Y-axis: 386 mm, X2-axis: 350 mm, Z2-axis: 230
mm
CAPACITY
Max turning length: 200 mm
Max turning diameter from bar: 20 mm
Max front drilling/tapping diameter: 10 mm
Max rear drilling/tapping diameter: 8 mm
SUB-SPINDLE
Sub-spindle speed: 8,000 rpm
Sub-spindle motor power: 3.7 kW
TOOL SLIDES
Max number of tools: 23
External/internal front tools: 10
Front radial live tools: 5
Rear tools, fixed/live: 8
MAIN SPINDLE
Spindle speed: 10,000 rpm
Spindle motor power: 3.7 kW
