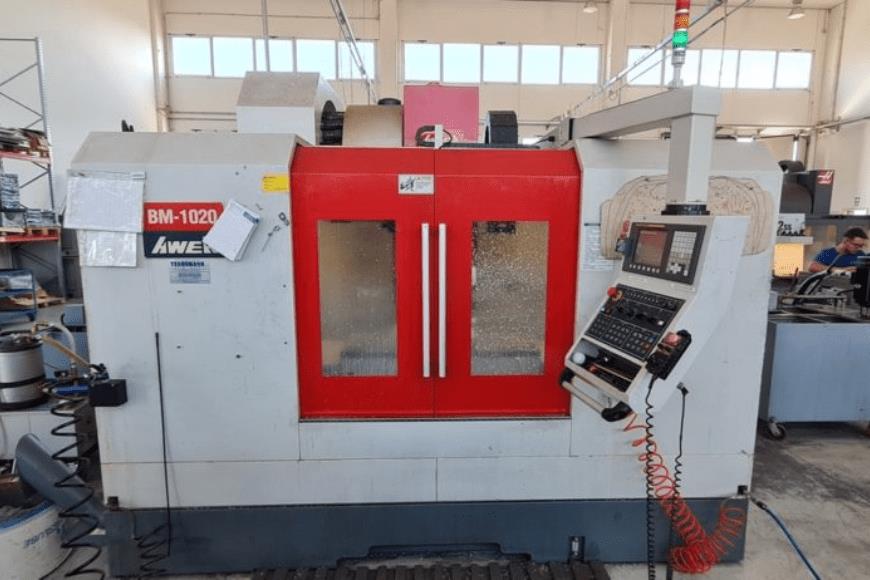

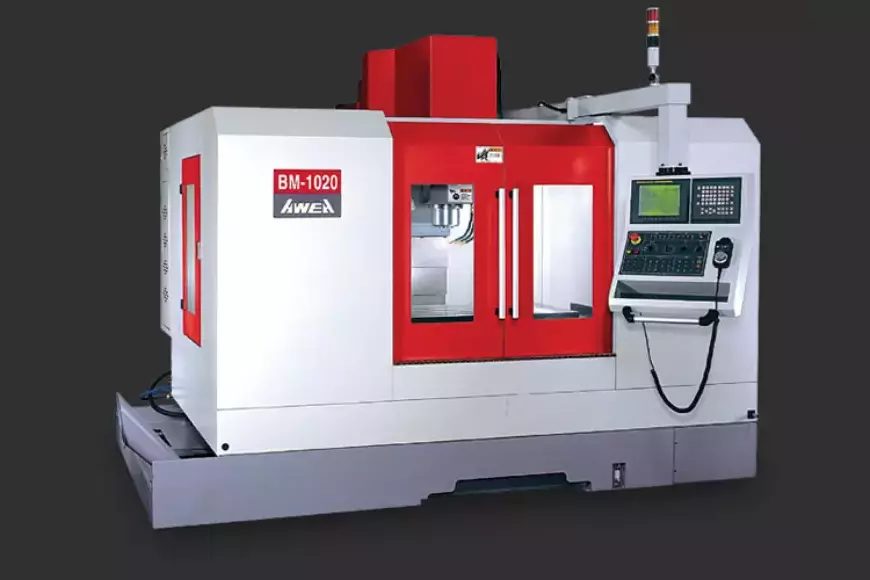

Awea BM-1020
Usable surface: 1120 × 600 mm
Maximum load capacity: 1,000 kg
TRAVEL
X-axis travel: 1020 mm
Y-axis travel: 600 mm
Z-axis travel: 600 mm
Distance spindle nose to table: 125 – 725 mm
Distance spindle center to column: 640 mm
FEED RATES
Rapid traverse (X, Y, Z): 24,000 mm/min
SPINDLE
Spindle taper: ISO 40 DIN 69871
Spindle speed: 40 – 8,000 RPM
Spindle motor power: 8.5 / 10.5 kW
Maximum torque: 216 / 267 Nm
